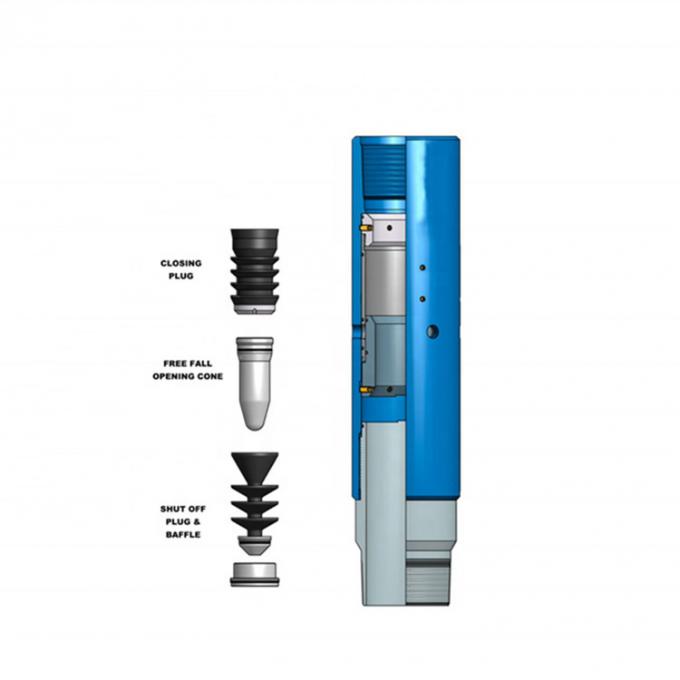

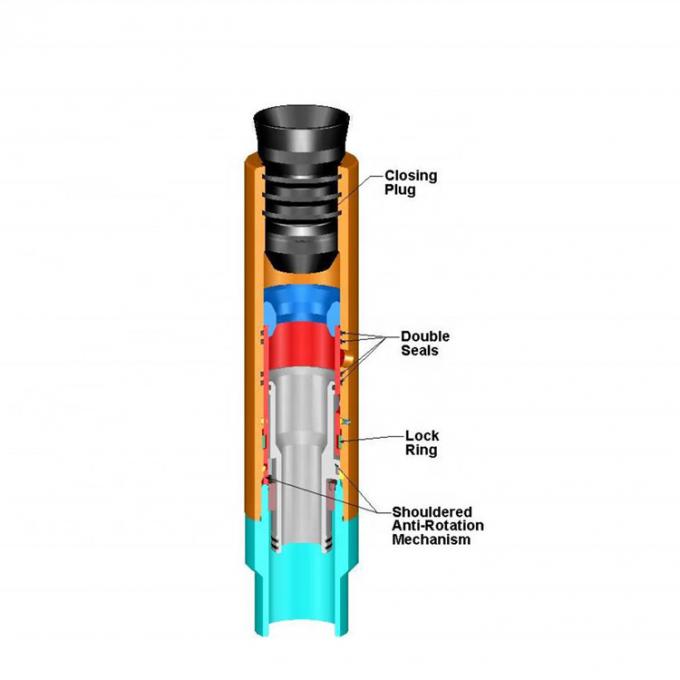

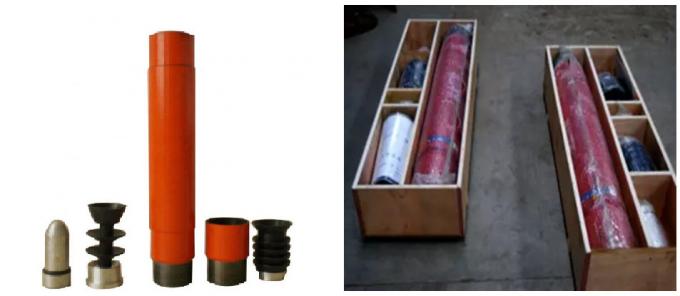

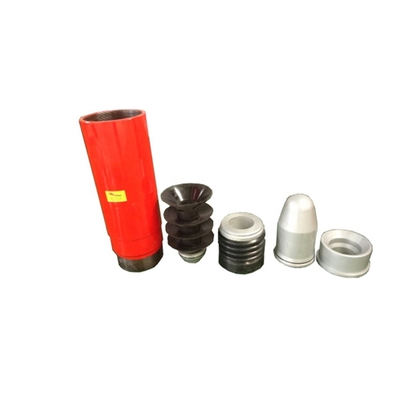

Product Details:
|

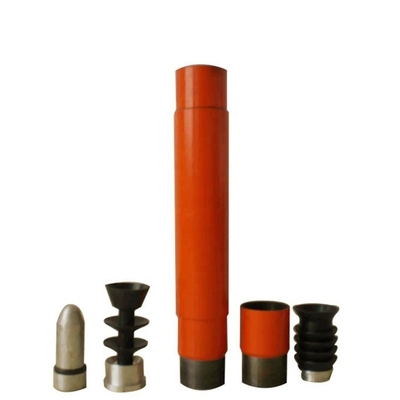

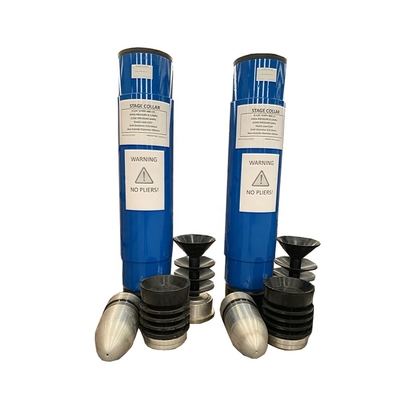

| Type: | Stage Cementing Collar | Application: | Energy & Minning |
|---|---|---|---|
| Machine Type: | Oilfield Cementing Equipment | Processing: | Forging |
| Material: | 35CrMo | ||
| High Light: | API 5CT Oilfield Cementing Tools,Double stage cementing collar,Oilfield Cementing Tools Hydraulic |
||
| Specifications, (in) | 5 1/2" | 7" | 9 5/8" | 13 3/8" |
| Max O.D., mm | 170 | 208 | 283 | 381 |
| Drill-out I.D., mm | 122 | 155 | 220 | 315 |
| Overall Length, mm | 1082 | 1182 | 1222 | 1280 |
| Rated Load, t | 140 | 170 | 210 | 300 |
| Sealing capacity, MPa | 25 | 25 | 25 | 25 |
| Opening Pressure, MPa | 13 | 13 | 13 | 14 |
| Closing Pressure, MPa | 5 | 5 | 5 | 5 |
| Lower Sliding Sleeve I.D., mm | 85 | 115 | 176 | 203 |
| Upper Sliding Sleeve I.D., mm | 95 | 125 | 197 | 285 |
Other products we supply:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
