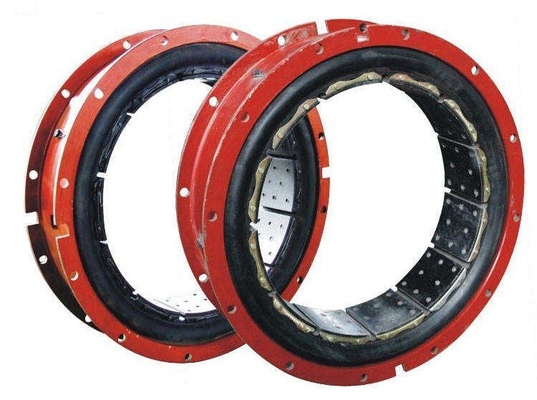

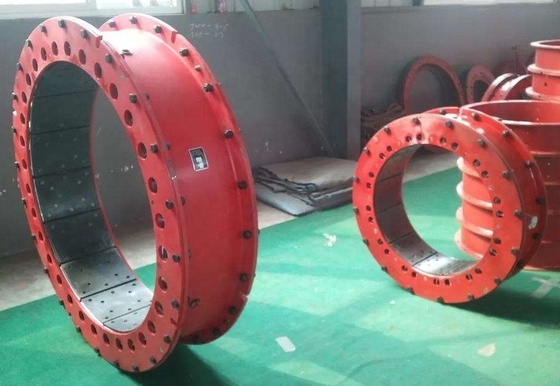

API 7K Oilfield Drilling Rig Drawworks Parts LT965/305 Pneumatic Tube Clutch
Pneumatic Tube Clutch description of Drawworks Parts

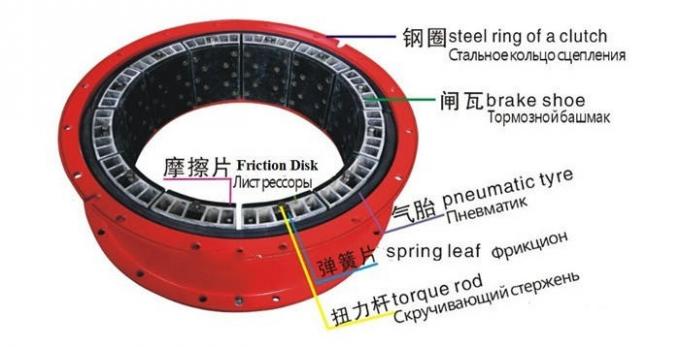

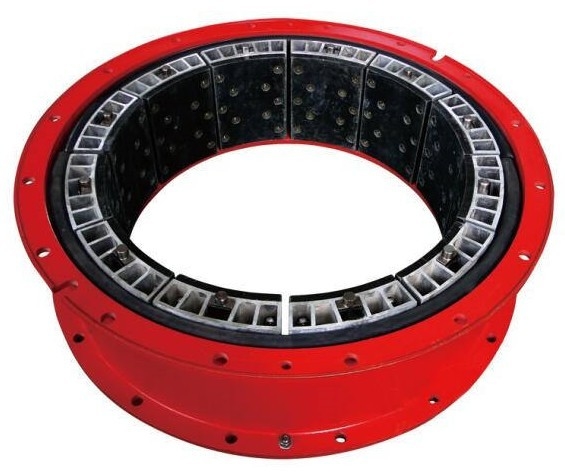

Pneumatic Tube Clutches are one of the most important transmission parts for drilling rigs and workover rigs, which are used to transmit torque and separate transmission system during operation. Air tube clutch has the character of clutch quick, smooth operation, clearance evenly, reliable and security.
Its main functions are:
1. Transmit torque in power transmission system.
2. Acts as a clutch and transmit torque in the pump set.
3. Can be used for pneumatic brake when emergency.

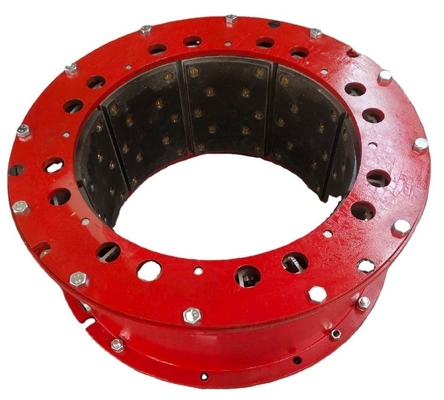

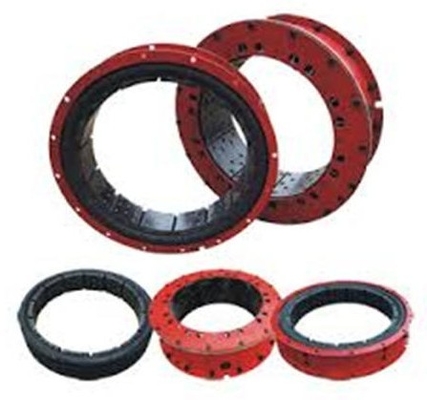

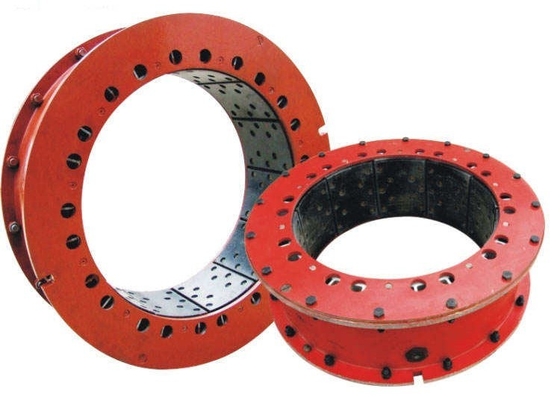

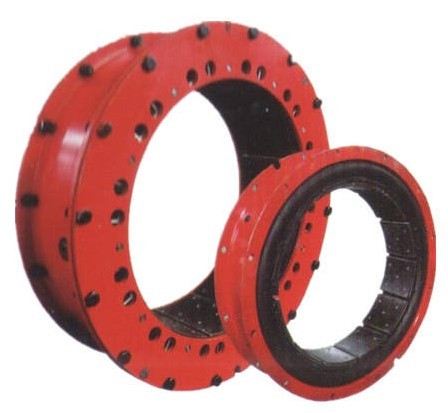

Air tube cluth can be devided into common type and ventilation type:
Common type: LT300/100T, LT400/125T, LT500/125T LT600/125T LT700/135T, LT700/200T, LT800/135T
Ventilation type: LT500/200T, LT500/250T, LT600/250T, LT700/250T, LT800/250T, LT900/250T ,LT1070/250T , LT1170/250T, LT965/305T, LT1168/305T, LT1120/300T,LT1250/300T,
| Type | LT500/200T | LT500/250T | LT600/250T | LT700/250T | LT700/135DY | |
| Ratata Speed r/min |
max | 1312-1578 | 1586-1701 | 1281-1544 | 1016-1224 | 1569-1890 |
| rating | 758-912 | 916-983 | 740-892 | 660-793 | 907-1092 | |
| Torsional Moment n.m |
max | 17110-24970 | 23390-26900 | 32200-46710 | 48200-69910 | 24560-35630 |
| rating | 11406-16646 | 15590-17930 | 21466-31140 | 32100-47300 | 16170-23750 | |
| Working Pressure(mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.85 | 0.7-0.9 | 0.7-0.9 | |
| Pneumatic Tube Cubage(l) | 3X2 | 2X3.5 | 2X4 | 2X4.2 | 2.4 | |
| Attrition Annulus Dia(mm) | Φ500 | Φ500 | Φ600 | Φ700 | Φ700 | |
| Join Link Size | Max Dia | Φ780 | Φ750 | Φ890 | Φ1010 | Φ935 |
| Max Width | 242 | 288 | 284 | 292 | 200 | |
| Bolt No.and Dia. | 12-Φ17 | 12-Φ18 | 16-Φ17 | 16-Φ22 | 20-Φ18 | |
| Bolt Distributing Dia. | Φ735 | Φ720 | Φ645 | Φ965 | Φ200 | |
| Air Tilet Pipe Screw Thread | M36X2/ZG1/2" | M36X2/ZG1/2" | M36X2/ZG1/2" | M36X2/ZG1/2" | M30X1.5/M20X1.5 | |
| Type | LT800/250T | LT900/250T | LT1070/250T | LT1170/250T | LT965/305T | |
| Ratata Speed r/min |
max | 1016-1224 | 903-1081 | 932-1123 | 765-820 | 895-1077 |
| rating | 587-707 | 522-628 | 539-668 | 442-474 | 452-563 | |
| Torsional Moment n.m |
max | 54240-78660 | 68000-98930 | 84600-122670 | 117740-134130 | 99680-142800 |
| rating | 36160-52440 | 45467-65953 | 56400-81790 | 78490-89420 | 78145-96755 | |
| Working Pressure(mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | |
| Pneumatic Tube Cubage(l) | 2X4.5 | 3X2 | 3.4 | 5.7 | 6 | |
| Attrition Annulus Dia(mm) | Φ800 | Φ900 | Φ1065 | Φ1168 | Φ965 | |
| Join Link Size | Max Dia | Φ1115 | Φ1200 | Φ1410 | Φ1500 | Φ1264 |
| Max Width | 300 | 305 | 260 | 302 | 358 | |
| Bolt No.and Dia. | 16-Φ22 | 16-Φ22 | 16-Φ27 | 12-Φ27 | 20-Φ21 | |
| Bolt Distributing Dia. | Φ420 | Φ1184 | Φ1445 | Φ1445 | Φ1486 | |
| Air Tilet Pipe Screw Thread | M36X2/ZG1/2" | M36X2/ZG1/2" | M45X1.5/M33X1.5 | M45X1.5/M33X1.5 | M30X1.5/M20X1.5 | |
