Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2

I'm Online Chat Now

Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2

Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2
Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2 Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2 Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2

Large Image :  Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2

Product Details:
Place of Origin: China
Brand Name: Topand
Certification: ISO
Model Number: 1/4"-2"
Payment & Shipping Terms:
Minimum Order Quantity: 30
Price: negotiable
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, , Western Union
Supply Ability: 70 per day

Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2

Description
Color:: Black Product Name:: Hydraulic Hose Pipe
Cover:: Weather Resistant Synthetic Rubber Temperature:: 40C~+120C
Material:: NBR
High Light:

Weather Resistant Rotary Drilling Hose

,

High Pressure Hydraulic Rotary Drilling Hose

Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2



Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.

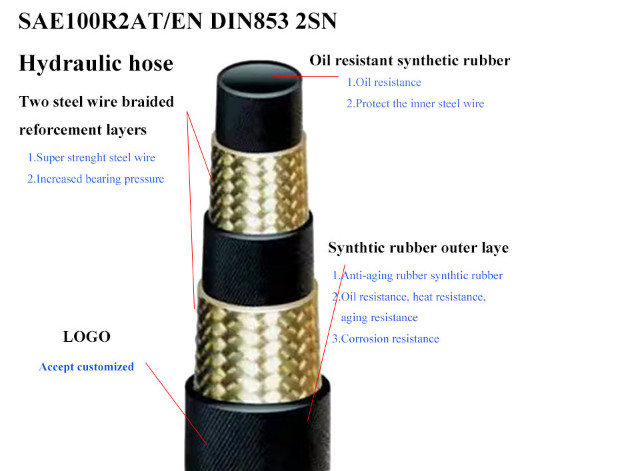

SAE 100 R1 R2 steel wire reinforced hydraulic hose is suitable for hydraulic hose and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life

Weather Resistant Rotary Drilling Hose High Pressure Hydraulic Hose SAE 100 R1 R2 0

INNER TUBE
oil resistant synthetic nitrile rubber
REINFORCEMENT
Two layer of steel wire braided
COVER
Black, oil resistant, synthetic rubber.
APPLICATION
Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R2 Type AT and performance requirementsof EN 853
2SN.Mine hydraulic support, oilfield extraction machinery, mine/ road/construction machinery.
SURFACE
SURFACE
TEMPERATURE RANGE
-40℃ (-104 ℉ ) to +100℃(+212 ℉)
size(inch)
OD(mm)
Working pressure(PSI)
Burst pressure(PSI)
WEIGHT(kg/m)
1/4
13
5800
23200
0.35
5/16
15
5075
20300
0.45
3/8
17
4785
19140
0.53
1/2
20.5
3988
15950
0.66
5/8
23.8
3625
14500
0.79
3/4
28
3118
12325
0.98
1
36
2393
9425
1.28
1 1/4
46
1813
7250
1.85
1 1/2
51
1305
5220
2.3
2
64
1160
4640
2.6
