Product Details:
|
| Model Number:: | QBY Series | Power Source:: | Pneumatic |
|---|---|---|---|
| Pressure:: | 2-8.4bar, Low Pressure | Application:: | Other, Industrial Boilers, Industrial Utilities, Wastewater |
| Outlet Size:: | 2 Inch | Material Of Casing: | C.I, S.S, AL, PVDF, Etc |
| Weight:: | 24-26kgs | Material Of Diaphragm And Ball Etc: | PTFE, PVDF, NBR, Etc |
| Flow Rate Range: | 0.8-30m3/h(3.5-132US.GPM) | Inlet/Outler Diameter: | 10 ~ 100mm |

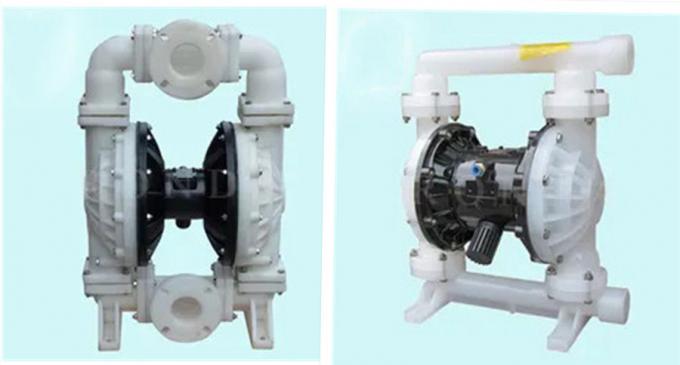

QBY Serious Air Driven Pneumatic Double Diaphragm Membrane Pump
Product description:
QBY air driven double acting reciprocating pump water membrane pump is not only capable of exhausting the flow liquid , but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
Advantage:
* No electricity. It's safe and reliable while in the flammable and explore places.
* Pump has no rotary parts and bearing seals. The diaphragm will completely separate the exhausted medium and pump running parts, working medium. There’s no leakage, thus it doesn’t cause environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.
* It's convenient to use and reliable to work. This pump is simple in structure and easy to be installed and maintained.
The medium conveyed doesn’t touch the matched pneumatic valve and coupling lever etc. While normal pumps’ performance will be decreased gradually because of the damages of driving parts.
* This pump doesn’t need oil lubricant, even works in dry run.
Product application:
* The pump transports various toxin, flammable, volatility strong acid, alkali and corrosive liquid etc.
* The pump may suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops, syrup, paint, pigment, glue, adhesive, glazed slurries of tile, porcelain, brick, chinaware, grinding materials, corrosive agent, clean the oil dirt, wedge water, cement slurry and mortar etc.
* It can be used as a front-step transmission device of the solid and liquid separation equipment.
Product Detail:
| Working Principle: | Double Diaphragms, pneumatic |
| Main applications: | Oil, Water, Chemical, Foodstuff,etc. |
| Driver: | Air operated |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Connect to compressor |
| Pump body mateiral: | C.I, S.S, AL, PP, PVDF, PTFE lined. |
| Diaphragm, ball, ball seat mateiral: | F46, PTFE, NBR, Santoprene, EPDM, etc |
| Maximum drive rating: | 7kgf/cm2 |
| Maximum caliber: | 100mm(4inch) |
| Maximum dischrage-side pressure: | 6kgf/cm2 |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 0.8-30m3/h(3.5-132US.GPM) |

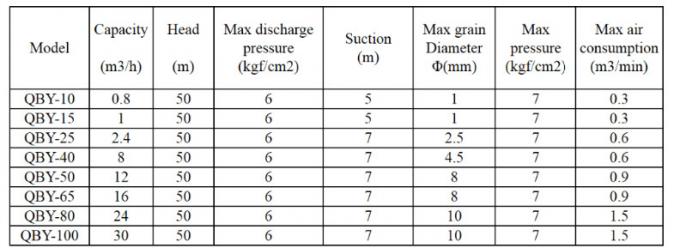

Technical parameters:
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
